Triple Nosepiece Monocular Laboratory Biological Microscope NCH-100M

Model Number : NCH-105M

Certification : CE / ISO

Place of Origin : China

MOQ : 1set

Price : Negotiable

Payment Terms : T/T, Western Union

Supply Ability : 6000sets per month

Packaging Details : Carton

Viewing Head : Monocular / Binocular

Eyepiece : WF 10× / 18

Objective : 185 Objective 4×, 10×, 40×

Moving Range : Plain 125 ×120mm

Light : S-LED

Model : NCH-100M

Contact Now

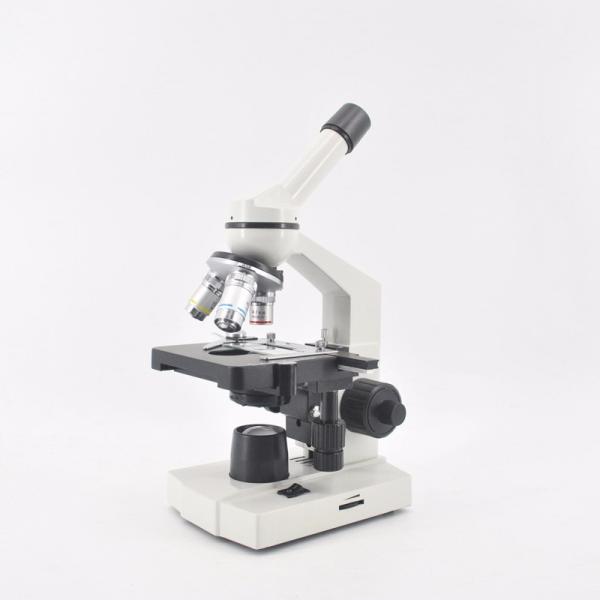

Compact Monocular Laboratory Biological Microscope NCH-100M

Description

With the feature of modern C frame shape, comfortable operation and reliable structure, Monocular or Binocular NCH-100M biological microscope can be widely used in medical and sanitary establishments, laboratories, institutes, colleges and universities.

NCH-100M biological microscope is equipped with 185 objectives 4×, 10×, 40×, (optional 100×) and wide field EW10×/ 18 eyepieces(optional WF16×/ 11), can chose Binocular or Quadruple Nosepiece according to needs.

Specification:

		NCH-100M	NCH-100C	NCH-100B
Viewing Head	Monocular Head inclined at 45°	●	●
	Binocular Head inclined at 30°			●
	Teaching Head
Eyepiece	Wide Field Eyepiece WF10×/18	●	●	●
Eyepiece	Eyepiece P16×/11
Objective	185 Objective 4×	●	●	●
	185 Objective 10×	●	●	●
	185 Objective 40×	●	●	●
	185 Objective 100×		●	●
	Objective(DIN)4×
	Objective(DIN)10×
	Objective(DIN)40×
	Objective(DIN)100×
Nosepiece	Triple Nosepiece	●
Nosepiece	Quadruple Nosepiece		●	●
Stage	Plain 125 ×120mm	●
	Attachable Mechanical Stage 120X120mm/ 60×30mm		●	●
	Double Layer Mechanical Stage 120X120mm/ 60×30mm
Condenser	Single Lens with Iris	●
	Abbe NA1.25 with Iris, Spiral up & down		●	●
	Abbe NA 1.25 with Iris, Rack & Pinion Adjustment
Illumination	S-LED Illumination, Brightness Adjustable	●	●	●
	Fluorescent Lamp 220V/ 110V/ 7W	○	○	○
	Halogen Lamp 6V/ 15W, Brightness Adjustable
	Mirror	○	○	○
Filter	Blue Filter		○	○
Filter	Green Filter		●	●

Note: ●Standard Outfit, ○Optional
